Android Enterprise Network Management

The Network Settings section in Springdel Android Enterprise profiles allows administrators to configure and enforce Wi-Fi and APN settings across managed devices. These options ensure consistent and secure network connectivity across your organization, supporting both corporate and carrier-based configurations.

Key Benefits

  • Centralized Connectivity Control – Configure, deploy, and manage all Wi-Fi and APN settings from a single console.
  • Reliable Network Access – Ensure devices remain connected to approved networks with consistent configuration enforcement.
  • Carrier-Ready APN Management – Support various carrier requirements with flexible APN field mappings and authentication types.
  • Improved Compliance & Security – Restrict devices to corporate networks and block unauthorized access points.

Step 1 - Access the Network Menu

  1. Log in to your Springdel console.
  2. Navigate to the Profiles section from the left-hand menu.
  3. Click the “Create New Profile +” button and select Android Enterprise as the device type.
  4. In the profile sidebar, select Wi-Fi, Web Filter, or APN to begin configuring network settings.

1. Configure Wi-Fi Settings

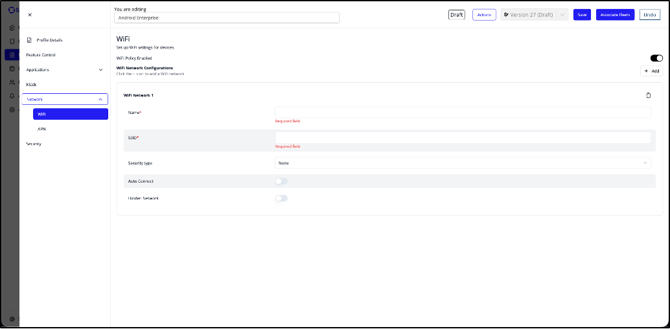

  1. In the profile sidebar, click Wi-Fi and toggle Wi-Fi Policy Enabled to On.
  2. Click + Add to add a new Wi-Fi network.
  3. Fill in the required fields:
Field Description Example
Name The Wi-Fi configuration name. Corp-Wifi
SSID Wi-Fi network name. Corp-WiFi
Security Type
 e.g., WPA, WEP, etc. WPA-PSK
Auto Connect Automatically connect when in range. Enabled
Hidden Network
 Enable if SSID is hidden. Off

Note: Multiple Wi-Fi networks can be added and prioritized.


2. Configure APN Settings

  1. In the profile sidebar, click APN and toggle the APN Policy Enabled switch to On.
  2. Fill in the required fields:
Field Description Example
Override APNs
 Select whether to replace device APN settings with profile-defined values. Options: Unspecified, True, False. True
Access Point Types Defines the usage for this APN. Common types: default, mms, supl, dun, fota. default
Access Point Display Name Friendly name for identifying the APN in the console. Corporate Internet
Access Point Name (APN)
 Carrier-provided APN string. internet.telco.com
Authentication Type Authentication method used by the carrier. Options: Unspecified, None, PAP, CHAP, PAP or CHAP. PAP/CHAP
MMS Proxy Host Address Host address for MMS proxy (if applicable). mms.telco.net
MMS Proxy Host Port Port for MMS proxy. 80
MVNO Type Defines MVNO matching rule. Options: Unspecified, SPN, IMSI, GID, ICCID. GID
Access Point Connection Username Username for authentication if required by the carrier. corpuser
Access Point Connection Password Password for authentication if required by the carrier. password123
Mobile Country Code (MCC) Country code assigned to the carrier. 502
Proxy Host Address Proxy server address if required. proxy.telco.net
Proxy Host Port Port used by the proxy server. 8080

Note: Available for Android 10 (API level 29) and higher.




Step 3 - Associate the Profile

  1. Once your profile is configured with the desired network settings, associate the profile with the target fleet.
  2. Once associated, the network settings will be deployed on all devices in that fleet according to the profile settings.

Best Practices & Tips

  • Test Before Deployment –: Apply new profiles to a small group before fleet-wide rollout.
  • Set at Least Two Wi-Fi Networks for Restrictions –: When using “Allow Only These Wi-Fi,” configure at least two networks to prevent connectivity issues.
  • Use Clear, Descriptive Names –: Label Wi-Fi and APN entries for easier maintenance.
  • Enter One URL per Line in Web Filters: Avoid commas and regex patterns; always include the protocol (http:// or https://).
  • Prefer Domain-Only Entries: Use entries like com for better compatibility and subdomain coverage.
  • Verify APN Settings with Carrier: Ensure MCC, MNC, and authentication types are correct to avoid mobile data issues.
  • Enable Preserve Wi-Fi Settings if Needed: Keep networks active even after a profile is removed.
  • Document Proxy or MMS Settings: Especially important when using custom or private mobile networks.
